SQL Demonstration

The Task

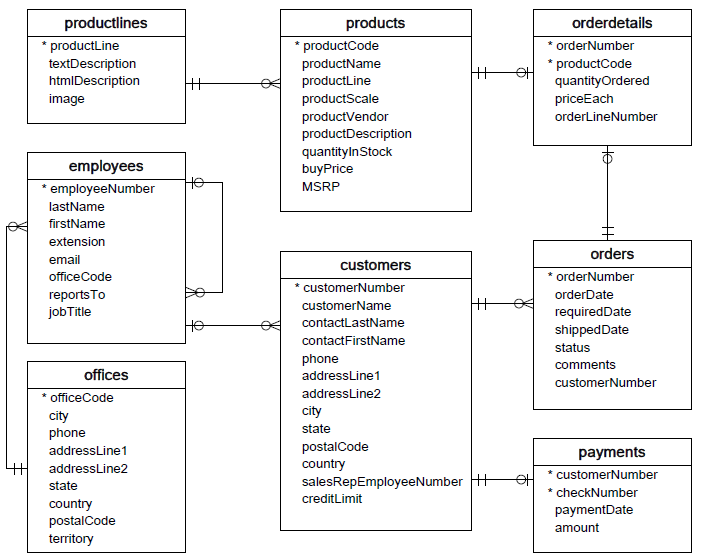

Here is the entity relationship diagram (ERD) of the customer database from which I’ll be working.

erd

Getting Started

Conduct SQL queries using pandas with the sqlite3 library.

import sqlite3
import pandas

# conn establishes a connection between pandas and the sql database
conn = sqlite3.Connection("data.sqlite")

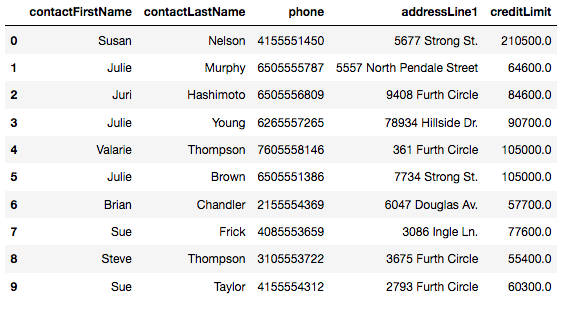

Query: Customers with Credit Over 25,000 in California

Write a query that gets the contact first name, contact last name, phone number, address line 1, and credit limit for all customers in California with a credit limit greater than 25000.00.

q1 = """
SELECT
    contactFirstName,
    contactLastName,
    phone,
    addressLine1,
    creditLimit
FROM
    customers
WHERE
    state = 'CA'
    AND creditLimit > 25000.00

;
"""
q1_result = pd.read_sql(q1, conn)
q1_result

Output

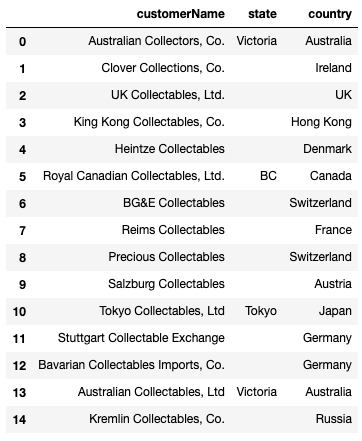

Query: Customers Outside of the USA with “Collect” in Their Name

Write a query that gets the customer name, state, and country, for all customers outside of the USA with "Collect" as part of their customer name.

q2 = """
SELECT
    customerName,
    state,
    country
FROM
    customers
WHERE
    country != 'USA'
    AND customerName LIKE '%Collect%'
;
"""
q2_result = pd.read_sql(q2, conn)
q2_result

Output

Query : Average Credit Limit by State in USA

Write a query that gets the average credit limit per state in the USA.

The two fields selected should be state and average_credit_limit, which is the average of the creditLimit field for that state.

q3 = """
SELECT
    state, AVG(creditLimit) AS average_credit_limit
FROM
    customers
WHERE
    country = 'USA'
GROUP BY
    state
;
"""

q3_result = pd.read_sql(q3, conn)
q3_result

Output

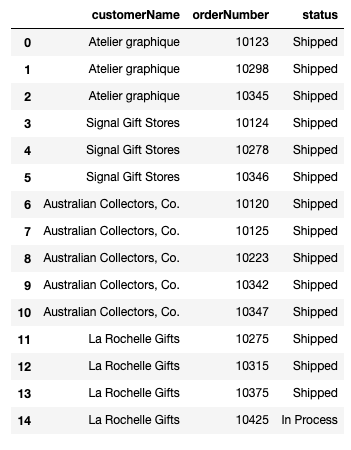

Query: Joining Customers and Orders

Write a query that uses JOIN statements to get the customer name, order number, and status for all orders. Refer to the ERD above to understand which tables contain these pieces of information, and the relationship between these tables.

Only display the first 15 results.

q4 = """
SELECT
    customerName,
    orderNumber,
    status
FROM
    customers
JOIN orders
    ON customers.customerNumber = orders.customerNumber
;
"""

q4_result = pd.read_sql(q4, conn)
q4_result.head(15)

Output

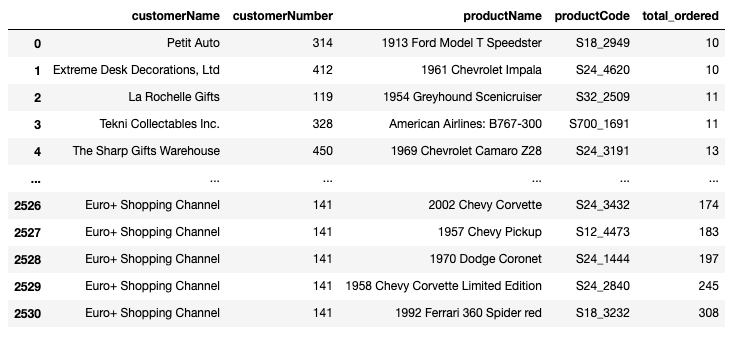

Query: Products that Have Been Purchased 10 or More Times

Write a query that, for each customer, finds all of the products that they have purchased 10 or more times cumulatively. For each record, return the customer name, customer number, product name, product code, and total number ordered. Sort the rows in descending order by the quantity ordered.

The five columns selected should be customerName, customerNumber, productName, productCode, and total_ordered, where total_ordered is the sum of all quantities of that product ordered by that customer.

q5 = """
SELECT
    c.customerName,
    c.customerNumber,
    p.productName,
    p.productCode,
    SUM(od.quantityOrdered) AS total_ordered
FROM
    customers c
    JOIN orders o
        ON c.customerNumber = o.customerNumber
    JOIN orderdetails od
        ON od.orderNumber = o.orderNumber
    JOIN products p
        ON p.productCode = od.productCode
GROUP BY
    c.customerName, od.productCode
HAVING SUM(od.quantityOrdered) >= 10
ORDER BY
    total_ordered, c.customerNumber

;
"""

q5_result = pd.read_sql(q5, conn)
q5_result

Output

Summary

In this code through, I provided examples of several data queries for a model car company, mainly focused around its customer data using many of the major concepts and keywords associated with SQL SELECT queries: FROM, WHERE, GROUP BY, HAVING, ORDER BY, JOIN, SUM, COUNT, and AVG.
